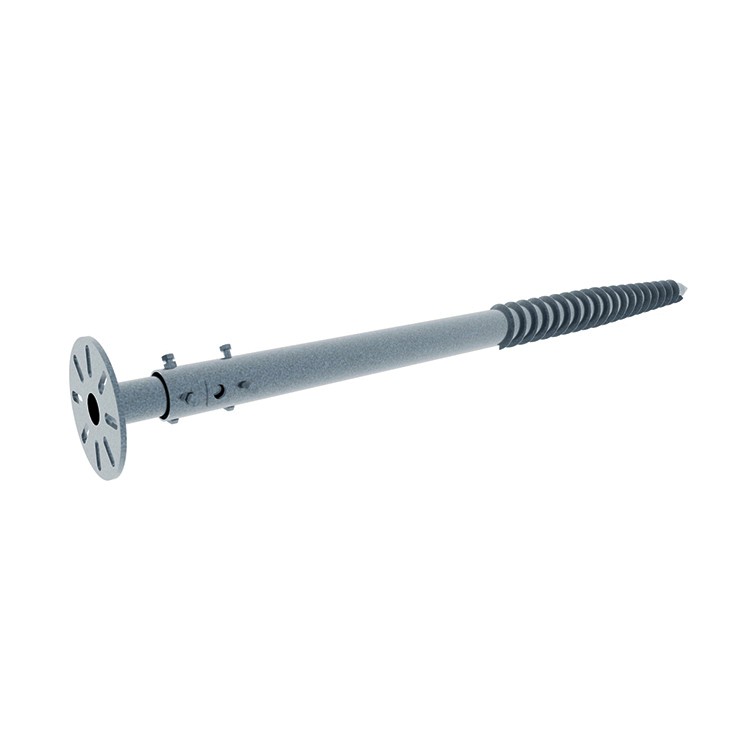

Adjustable Ground Screw pile

Product Description
1.Technical Parameters
Material: Hot-galvanized Steel Q235
High Class Hot-galvanized 80u~120u

Item No.	Diameter	Thickness	Length
AGS-F76-T3.0-L1600	76mm	3mm	1600mm
AGS-F76-T3.0-L1800			1800mm
AGS-F76-T3.0-L2000			2000mm
AGS-F76-T3.0-L2200			2200mm
AGS-F76-T3.0-L2500			2500mm
AGS-F76-T3.0-L3000			3000mm

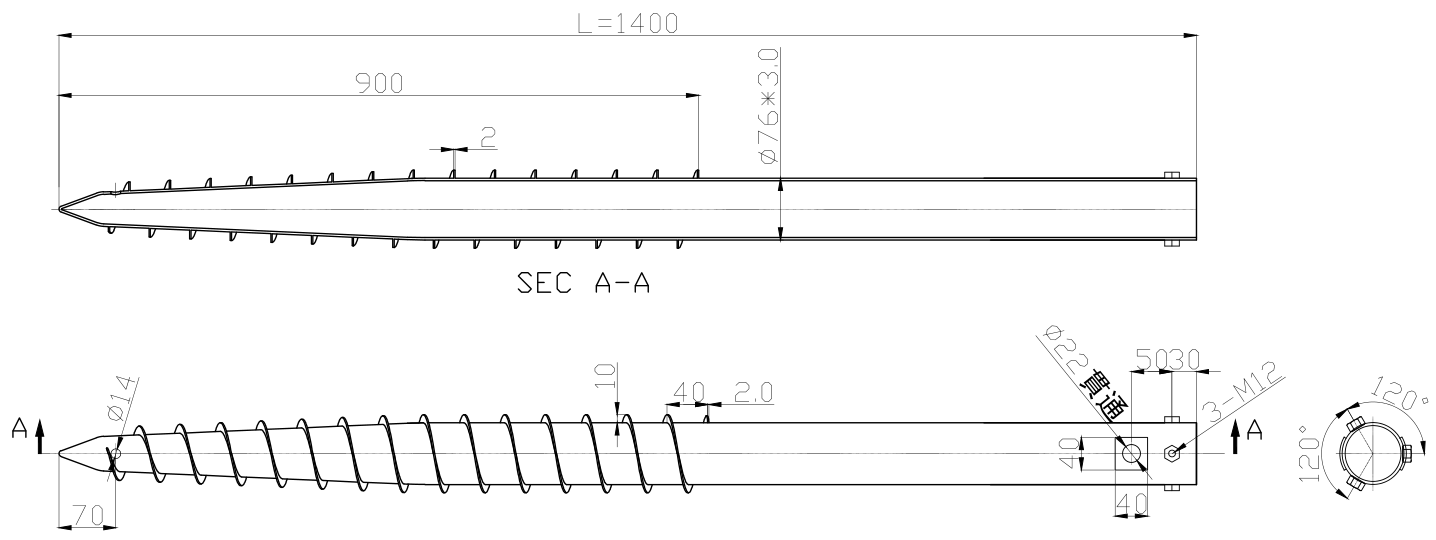

▲：Four Blades Screw Pile ▼：Ribbon Screw Pile
