Aluminum Solar Ground Mounting System
Product Description
Aluminum Solar Ground Mounting System is a convenient solution design for ground mount installation, from commercial to utility level and the supporting frame is delivered with highest pre-assembly to unfold at site. It can be adapted to different local conditions, the optimized design is done by experienced structure engineer, this is essential as high loads caused by wind and snow. Depending on the projects input, the system is connected to the ground using ground screw or concrete foundations, and variable inclination and height makes plant design flexible.
Technical Information
| Install Site | Open Terrain |
| Tilt Angle | 5°~60° |
| Snow Load | 1.5KN/m² |
| Module Orientation | Landscape or Portrait |
| Foundation Type | Concrete Base or Ground Screw |
| Material | Aluminum 6005-T5 (AL6005-T5), Stainless Steel 304 (SUS 304) |
| Design Standard | JIS C8955：2011 |
| Warranty | 12 years quality guaranty |
Products using aluminum alloy 6005-T5 (AL6005-T5) and stainless steel 304 (SUS 304), high strength, corrosion resistance is good

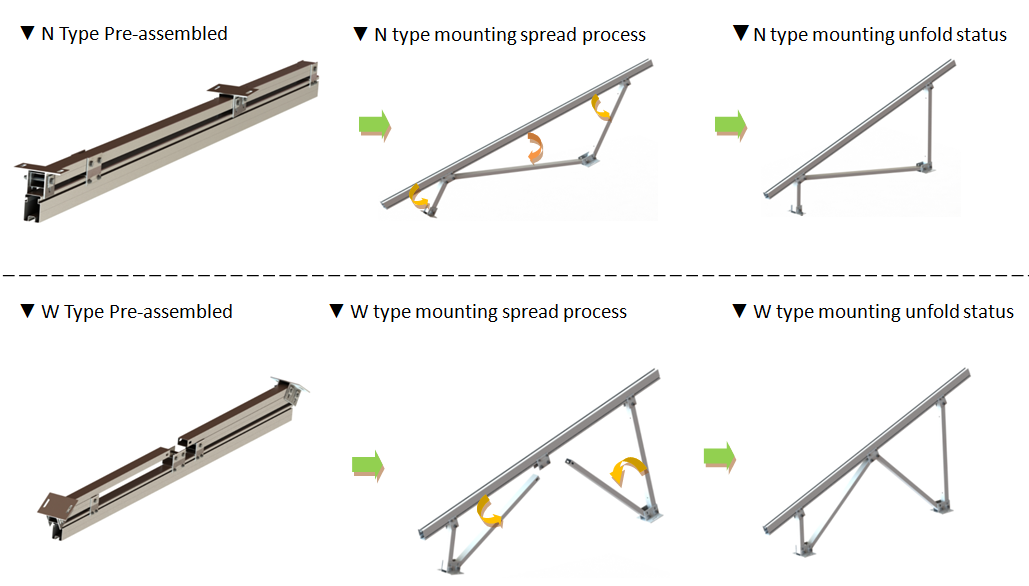

Most of the components are pre-assembled before shipment, there is no need to drilling, cutting and other operations on site, simply adjust locking to complete the installation

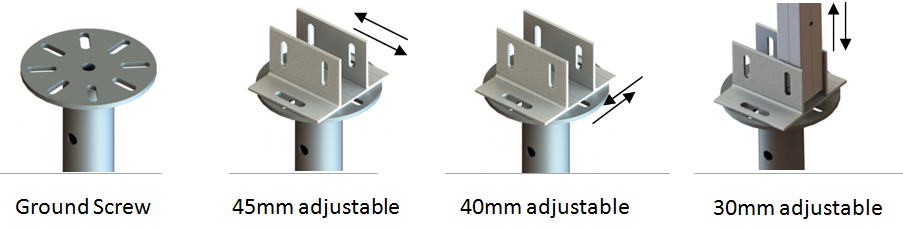

Ground screws and concrete foundations optional
Compatible with most modules and most wind loads.
Smart design reduce the difficulty of the installation on the most condition.
