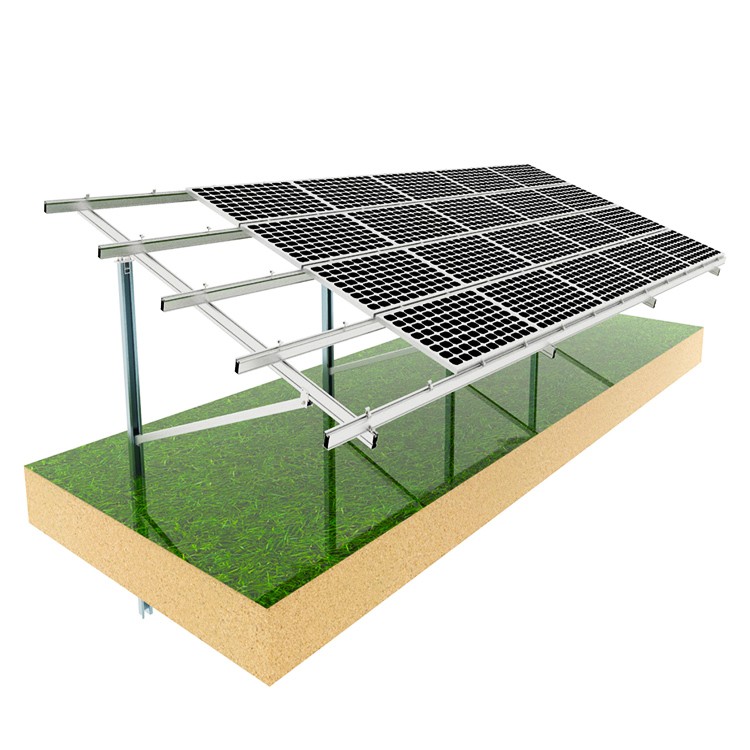

Pile Solar Ground Racking Structure System

Product Description
Pile Ground Solar Structure system is a very economical solution for large commercial and utility scale installation, it's suitable for both framed and frameless modules, especially on uneven terrain.

Technical Information
Tilt Angle	5°~ 60°
Max Wind Speed	42 m/s
Max Snow Load	1.5KN/m²
Material	Galvanized Steel Q235 & Aluminum 6005-T5
Warranty	10 years

Features
1. Suitable for different areas, such as low-cost concretes and high wind and heavy snow areas
2. Ground screw foundation and concrete foundation can be acceptable
3. Parts have been high pre-assembly on factory to save your installation time

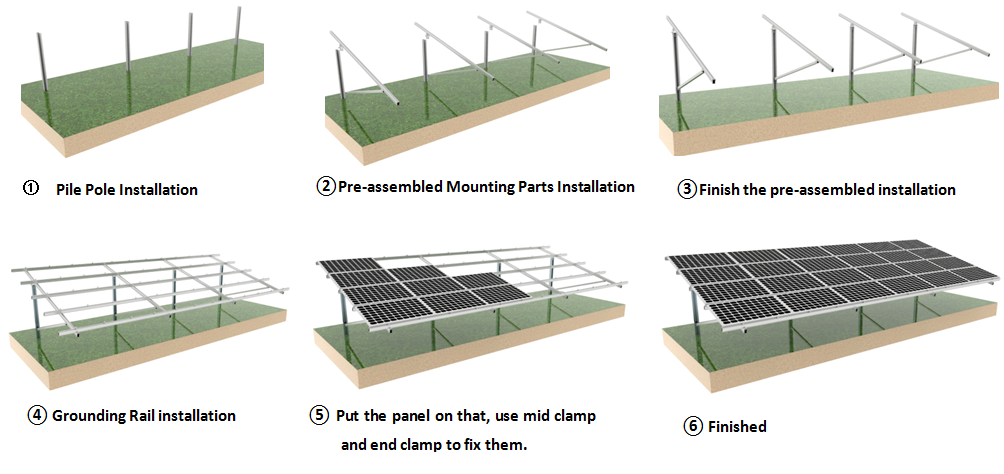

4. Simple and fast installation
5. High quality galvanized steel material

▲：Pole Solar Ground Mounting System ▼：Aluminum Solar Ground Mounting System
